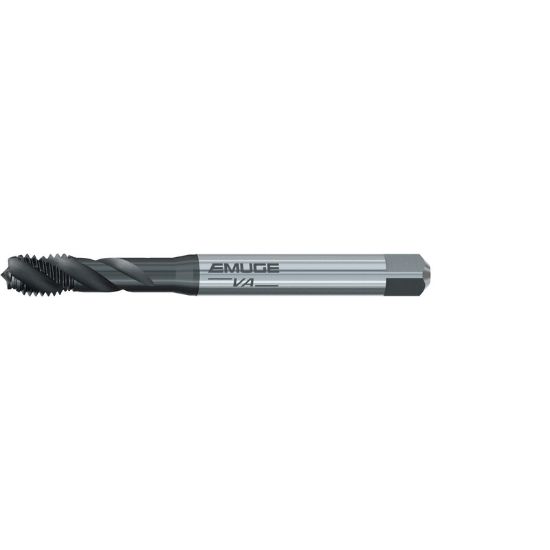

EMUGE B0503200.0218 Tap M5-0.50MM Mod Bottom Metric DIN/DIN 2.0P-3.0P Cobalt HSSE Oxide + TiN

ISO: B0503200.0218

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB0503200.0218
Delivery date: 3-5 days
$68.00

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Tapping, Cut Tapping
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Massachusetts
Coating Oxide + TiN
Dimensional Specifications
Tool Material Steel
Drill Range 0.1764 4.48MM - 0.1815 4.61MM
Thread Type Metric
Overall Len 2.7560 70.00MM
Tap Square 0.1520
Thread Size M5
Tap Chamfer 2.0P-3.0P
Flute Direction R - Right
Length Type Standard
Thread Limit 6H
Shank/Pilot Dia 0.2360 5.99MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Pitch 0.50MM
Cut Rating <42HRC Steel, Stainless Steel
Machine Side Connection Type Tap Collet
Dimension Standard DIN/DIN
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
