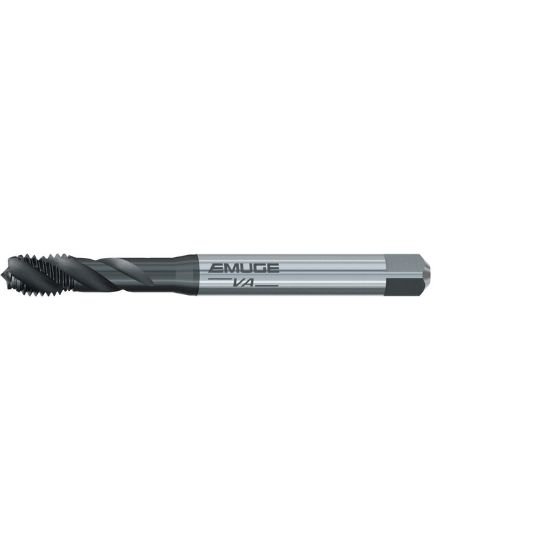

Picture of Emuge B0503200.0025 Tap M2.5-0.45mm Mod Bottom Metric DIN/DIn 2.0P-3.0P HSS HSSE Oxide + TiN

Emuge B0503200.0025 Tap M2.5-0.45mm Mod Bottom Metric DIN/DIn 2.0P-3.0P HSS HSSE Oxide + TiN

Part Number: EMUB0503200.0025 ISO: B0503200.0025

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1159813
Vendor: Sussex Tool and Supply
$57.95
EMUGE B0503200.0025 M2.5x0.45MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Oxide + TiN 6H Metric Steel TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <42HRC Steel
Coating Oxide + TiN
Overall Length 1.9685 50.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1102 2.80MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 0.45MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M2.5
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Tap Drill Range 0.0799 2.03MM - 0.0846 2.15MM
Tap Square 0.1100
Tap Chamfer 2.0P-3.0P
