  • EMUGE B0501400.0016 Tap M1.6-0.35MM Mod Bottom Metric DIN/DIN 2.0P-3.0P Cobalt HSSE TiN

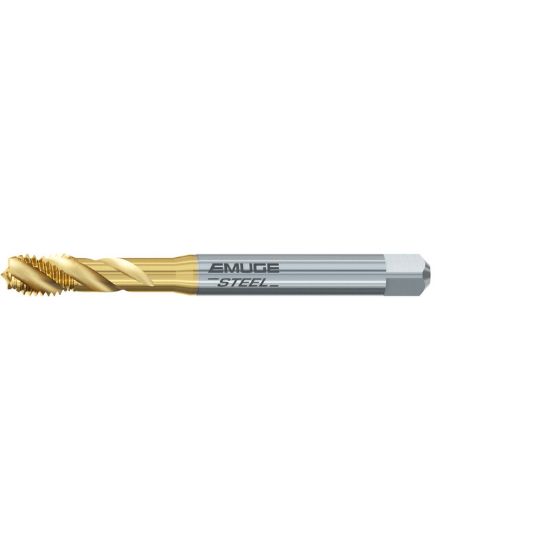

Picture of EMUGE B0501400.0016 Tap M1.6-0.35MM Mod Bottom Metric DIN/DIN 2.0P-3.0P Cobalt HSSE TiN

EMUGE B0501400.0016 Tap M1.6-0.35MM Mod Bottom Metric DIN/DIN 2.0P-3.0P Cobalt HSSE TiN

ISO: B0501400.0016

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB0501400.0016
Delivery date: 3-5 days
$77.91

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Shipping State Massachusetts
Package Size 1
Made In USA No
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Dimensional Specifications
Machine Side Connection Type Tap Collet
Drill Range 0.0496 1.26MM - 0.0524 1.33MM
Tap Type Mod Bottom
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Length Type Standard
Thread Type Metric
Dimension Standard DIN/DIN
Tool Material Steel
Tap Square 0.1100
Thread Size M1.6
Thread Pitch 0.35MM
Overall Len 1.6250 41.28MM
Cut Rating <42HRC Steel, Stainless Steel
Shank/Pilot Dia 0.1410 3.58MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
