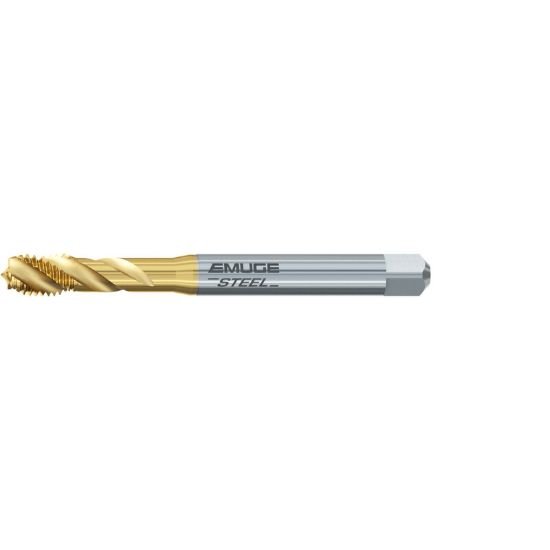

Picture of Emuge B0501400.0229 Tap M6-0.75mm Mod Bottom Metric DIN/DIn 2.0P-3.0P HSS HSSE TiN

Emuge B0501400.0229 Tap M6-0.75mm Mod Bottom Metric DIN/DIn 2.0P-3.0P HSS HSSE TiN

Part Number: EMUB0501400.0229 ISO: B0501400.0229

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1158867
Vendor: Sussex Tool and Supply
$84.90
EMUGE B0501400.0229 M6x0.75MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE TiN 6H Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <42HRC Steel
Coating TIN
Overall Length 3.1496 80.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2360 5.99MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 0.75MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M6
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Tap Drill Range 0.2055 5.22MM - 0.2134 5.42MM
Tap Square 0.1910
Tap Chamfer 2.0P-3.0P
