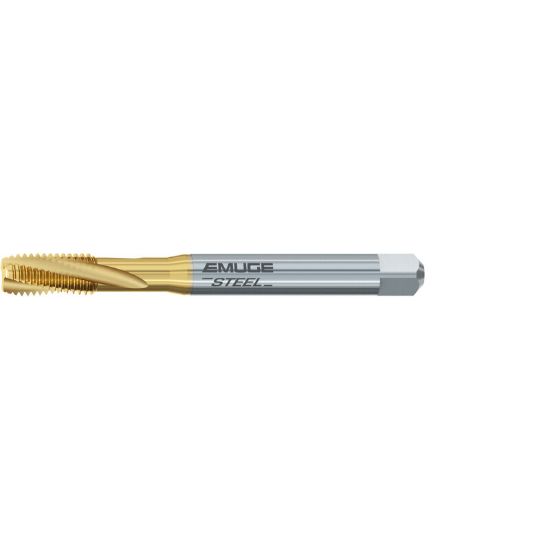

EMUGE B0461400.0080 Tap Bottoming M8-1.25MM 6H Metric DIN/DIN HSSE TiN

ISO: B0461400.0080

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB0461400.0080
Delivery date: 3-5 days
$68.00

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Made In USA No
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Thread Size M8
Thread Type Metric
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Tap Type Bottoming
Thread Limit 6H
Overall Len 3.5433 90.00MM
Thread Pitch 1.25MM
Tool Material Steel
Shank/Pilot Dia 0.3140 7.98MM
Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Dimension Standard DIN/DIN
Flutes/Inserts 3
Tap Square 0.2380
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Multi Spindle Yes
Job Shop Yes
