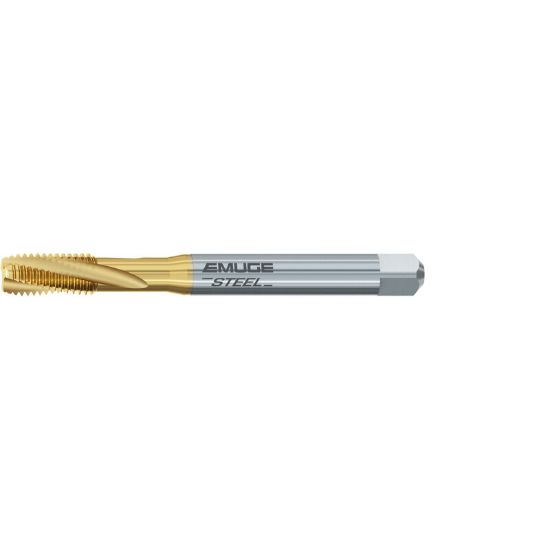

EMUGE B0461400.0060 Tap Bottoming M6-1.00MM 6H Metric DIN/DIN HSSE TiN

ISO: B0461400.0060

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB0461400.0060
Delivery date: 3-5 days
$57.41

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Shipping State Massachusetts
Application Cut Tapping, Bottom Tapping, Tapping
Performance Rating High Performance
Coating TiN
Dimensional Specifications
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Cut Rating <40HRC Steel, Stainless Steel
Thread Limit 6H
Shank/Pilot Dia 0.2360 5.99MM
Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Square 0.1910
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Thread Size M6
Dimension Standard DIN/DIN
Flutes/Inserts 3
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Thread Type Metric
Overall Len 3.1496 80.00MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Multi Spindle Yes
Job Shop Yes
