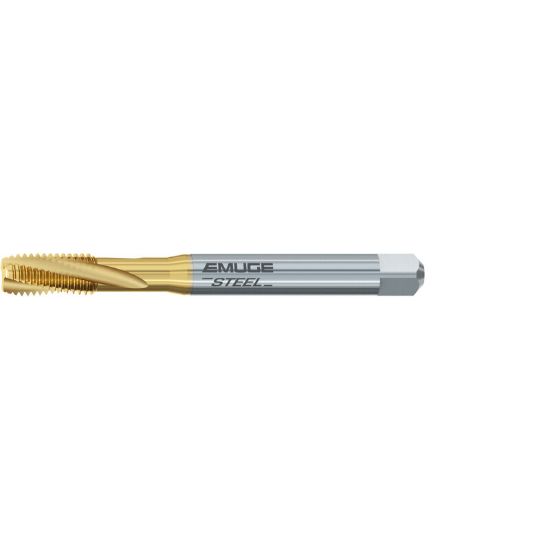

EMUGE B0461400.0050 Tap Bottoming M5-0.80MM 6H Metric DIN/DIN HSSE TiN

ISO: B0461400.0050

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB0461400.0050
Delivery date: 3-5 days
$56.14

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Made In USA No
Coating TiN
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Thread Size M5
Dimension Standard DIN/DIN
Flutes/Inserts 3
Thread Type Metric
Thread Pitch 0.80MM
Overall Len 2.7560 70.00MM
Tap Square 0.1520
Length Type Standard
Tap Type Bottoming
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Machine Side Connection Type Tap Collet
Thread Limit 6H
Shank/Pilot Dia 0.2360 5.99MM
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Tool Material Steel
Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Multi Spindle Yes
Job Shop Yes
