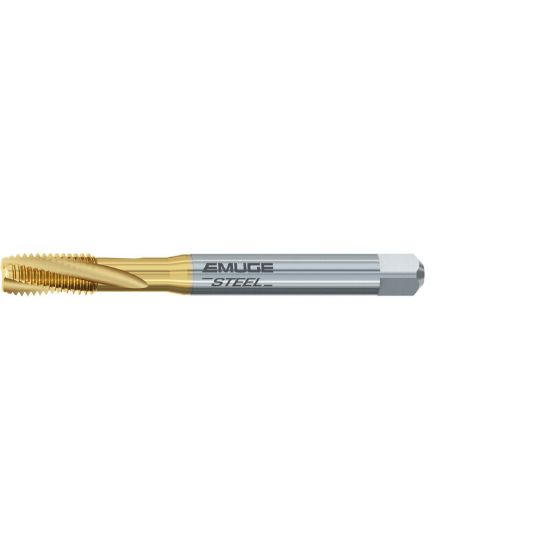

EMUGE B0461400.0025 Tap M2.5-0.45MM Bottoming Metric DIN/DIN 1.5P-2.0P Carbide HSSE TiN

ISO: B0461400.0025

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB0461400.0025
Delivery date: 3-5 days
$56.77

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Application Bottom Tapping, Tapping, Cut Tapping
Performance Rating High Performance
Shipping State Massachusetts
Coating TiN
Dimensional Specifications
Tool Material Steel
Flute Direction R - Right
Drill Range 0.0799 2.03MM - 0.0846 2.15MM
Tap Square 0.1100
Length Type Standard
Tap Type Bottoming
Thread Pitch 0.45MM
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 2
Thread Type Metric
Overall Len 1.9685 50.00MM
Shank/Pilot Dia 0.1102 2.80MM
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Thread Size M2.5
Machine Side Connection Type Tap Collet
Dimension Standard DIN/DIN
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Multi Spindle Yes
