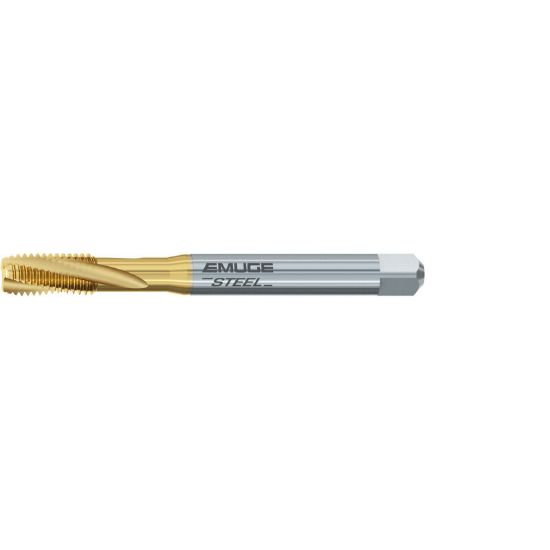

EMUGE B0461400.0020 Tap M2-0.40MM Bottoming Metric DIN/DIN 1.5P-2.0P Carbide HSSE TiN

ISO: B0461400.0020

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB0461400.0020
Delivery date: 3-5 days
$61.26

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Made In USA No
Shipping State Massachusetts
Package Size 1
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Dimensional Specifications
Thread Type Metric
Thread Pitch 0.40MM
Overall Len 1.7717 45.00MM
Drill Range 0.0622 1.58MM - 0.0665 1.69MM
Machine Side Connection Type Tap Collet
Tool Material Steel
Thread Size M2
Flute Direction R - Right
Tap Square 0.1100
Length Type Standard
Tap Type Bottoming
Thread Limit 6H
Shank/Pilot Dia 0.1102 2.80MM
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 2
Dimension Standard DIN/DIN
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Multi Spindle Yes
