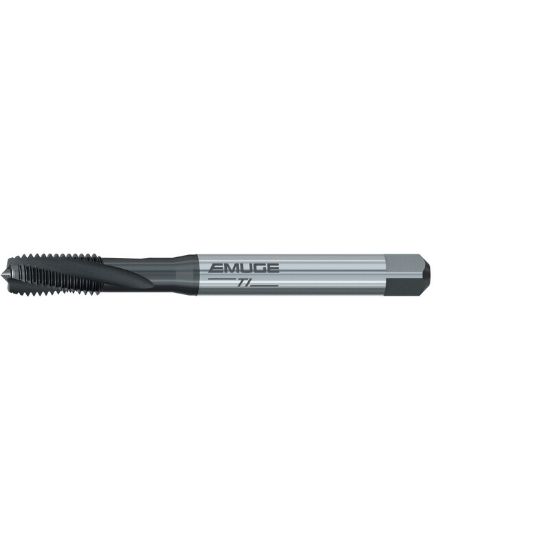

EMUGE B0456001.0050 Tap M5-0.80MM Mod Bottom Metric DIN/DIN 2.0P-3.0P HSS HSSE Nitride + Steam Oxide

ISO: B0456001.0050

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB0456001.0050
Delivery date: 3-5 days
$53.98

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Made In USA No
Application Mod Bottom Tapping, Tapping, Cut Tapping
Coating Nitride + Steam Oxide
Performance Rating High Performance
Dimensional Specifications
Thread Limit 6H
Shank/Pilot Dia 0.2360 5.99MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Flute Direction R - Right
Length Type Standard
Thread Pitch 0.80MM
Thread Type Metric
Cut Rating High Temp, Inconel, Titanium
Overall Len 2.7560 70.00MM
Tap Square 0.1520
Tool Material Steel
Thread Size M5
Dimension Standard DIN/DIN
Flutes/Inserts 3
Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
