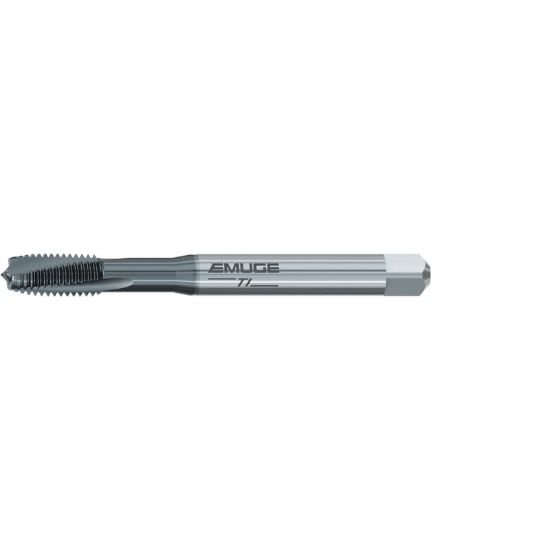

Picture of Emuge B0309601.0025 Tap M2.5-0.45mm Plug Metric DIN/DIn 4P-5P Cobalt HSSE TiCN

Emuge B0309601.0025 Tap M2.5-0.45mm Plug Metric DIN/DIn 4P-5P Cobalt HSSE TiCN

Part Number: EMUB0309601.0025 ISO: B0309601.0025

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1159406
Vendor: Sussex Tool and Supply
$71.00
EMUGE B0309601.0025 M2.5x0.45MM Cut Spiral Point Plug 4P-5P HSSE TiCN 6H Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating High Temp, Inconel, Titanium
Coating TICN
Overall Length 1.9685 50.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1102 2.80MM
Flutes/Inserts 2
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 0.45MM
Thread Type METRIC
Flute Direction LEFT
Thread Size M2.5
Thread Limit 6H
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard DIN/DIN
Tap Drill Range 0.0799 2.03MM - 0.0846 2.15MM
Tap Square 0.1100
Tap Chamfer 4P-5P
