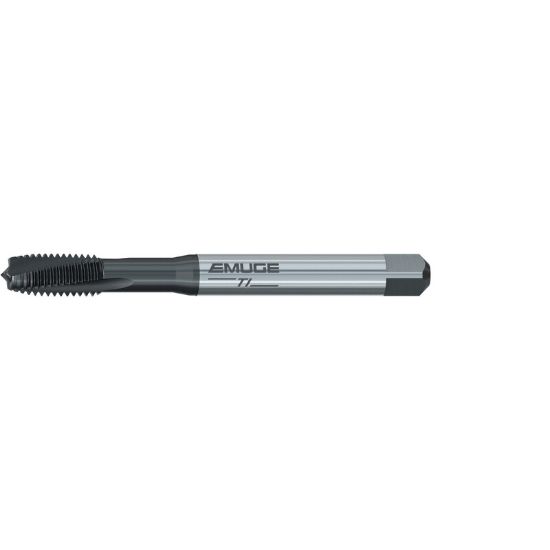

EMUGE B0306001.0100 Tap Plug M10-1.50MM 6H Metric DIN/DIN HSSE Nitride + Steam Oxide

ISO: B0306001.0100

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB0306001.0100
Delivery date: 3-5 days
$63.54

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Application Through Hole Tapping, Plug Tapping, Tapping, Cut Tapping
Coating Nitride + Steam Oxide
Made In USA No
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Thread Limit 6H
Tap Square 0.2860
Tool Material Steel
Tap Chamfer 4P-5P
Thread Pitch 1.50MM
Overall Len 3.9370 100.00MM
Length Type Standard
Thread Type Metric
Cut Rating High Temp, Inconel, Titanium
Tap Type Plug
Machine Side Connection Type Tap Collet
Drill Range 0.3323 8.44MM - 0.3476 8.83MM
Tap Style Cut Spiral Point
Thread Size M10
Flute Direction L - Left
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.3930 9.98MM
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
