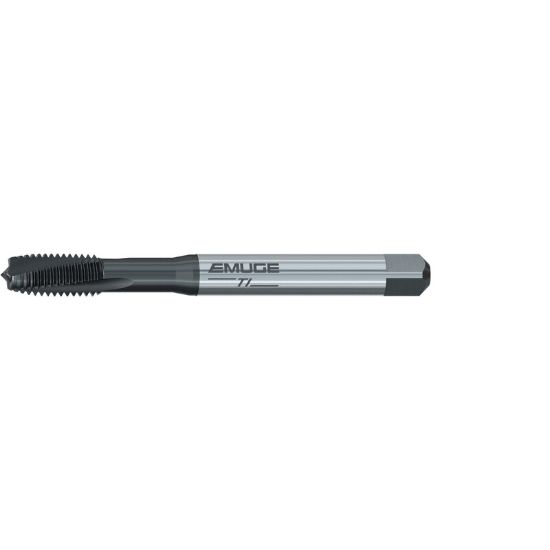

EMUGE B0306001.0060 Tap Plug M6-1.00MM 6H Metric DIN/DIN HSSE Nitride + Steam Oxide

ISO: B0306001.0060

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB0306001.0060
Delivery date: 3-5 days
$50.05

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Through Hole Tapping, Plug Tapping
Performance Rating High Performance
Coating Nitride + Steam Oxide
Made In USA No
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Thread Size M6
Dimension Standard DIN/DIN
Flutes/Inserts 3
Tool Material Steel
Tap Chamfer 4P-5P
Overall Len 3.1496 80.00MM
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Style Cut Spiral Point
Length Type Standard
Thread Limit 6H
Shank/Pilot Dia 0.2360 5.99MM
Tap Square 0.1910
Thread Type Metric
Flute Direction L - Left
Cut Rating High Temp, Inconel, Titanium
Tap Type Plug
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
