  • EMUGE B0208F01.0025 Tap M2.5-0.45MM Plug Metric DIN/DIN 4P-5P Carbide HSSE-Powder Metal TiN

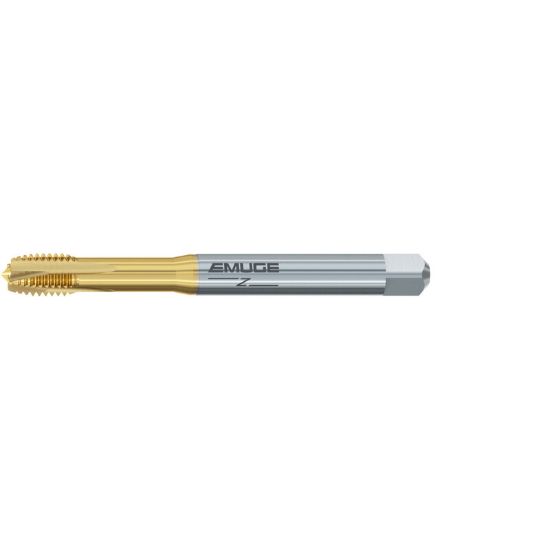

Picture of EMUGE B0208F01.0025 Tap M2.5-0.45MM Plug Metric DIN/DIN 4P-5P Carbide HSSE-Powder Metal TiN

EMUGE B0208F01.0025 Tap M2.5-0.45MM Plug Metric DIN/DIN 4P-5P Carbide HSSE-Powder Metal TiN

ISO: B0208F01.0025

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB0208F01.0025
Delivery date: 3-5 days
$65.49

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Coating TiN
Shipping State Massachusetts
Package Size 1
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Thread Type Metric
Overall Len 1.9685 50.00MM
Tap Type Plug
Tool Material Steel
Tap Chamfer 4P-5P
Dimension Standard DIN/DIN
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.1102 2.80MM
Thread Size M2.5
Flute Direction STRAIGHT
Tap Style Cut Spiral Point
Thread Pitch 0.45MM
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Drill Range 0.0799 2.03MM - 0.0846 2.15MM
Tap Square 0.1100
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
