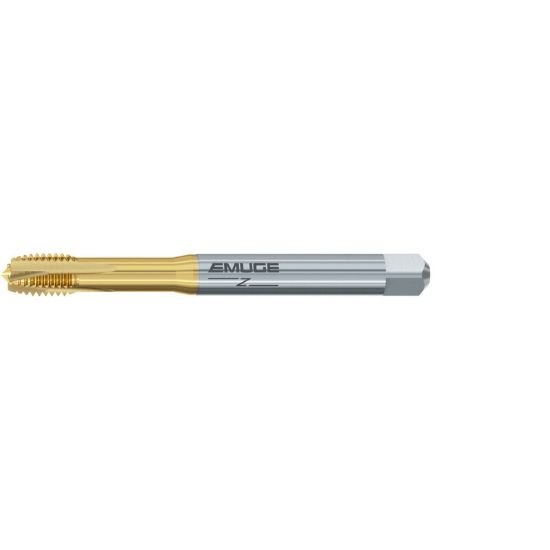

Picture of Emuge B0208F01.0035 Tap M3.5-0.60mm Plug Metric DIN/DIn 4P-5P Carbide HSSE-Powder Metal TiN

Emuge B0208F01.0035 Tap M3.5-0.60mm Plug Metric DIN/DIn 4P-5P Carbide HSSE-Powder Metal TiN

Part Number: EMUB0208F01.0035 ISO: B0208F01.0035

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1158234
Vendor: Sussex Tool and Supply
$58.31
EMUGE B0208F01.0035 M3.5x0.60MM Cut Spiral Point Plug 4P-5P HSSE-PM TiN 6H Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TIN
Overall Length 2.2047 56.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1570 3.99MM - #22
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 0.60MM
Thread Type METRIC
Flute Direction STRAIGHT
Thread Size M3.5
Thread Limit 6H
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard DIN/DIN
Tap Drill Range 0.1134 2.88MM - 0.1193 3.03MM
Tap Square 0.1100
Tap Chamfer 4P-5P
