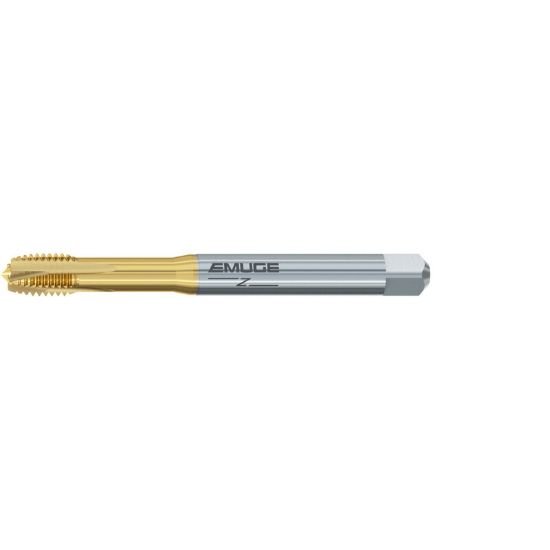

Picture of Emuge B0208F01.0020 Tap M2-0.40mm Plug Metric DIN/DIn 4P-5P Carbide HSSE-Powder Metal TiN

Emuge B0208F01.0020 Tap M2-0.40mm Plug Metric DIN/DIn 4P-5P Carbide HSSE-Powder Metal TiN

Part Number: EMUB0208F01.0020 ISO: B0208F01.0020
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$70.08
SKU: 1158231

Description

EMUGE B0208F01.0020 M2x0.40MM Cut Spiral Point Plug 4P-5P HSSE-PM TiN 6H Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction STRAIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4P-5P
Dimensions & Sizing
Overall Length 1.7717 45.00MM
Shank/Pilot Dia 0.1102 2.80MM
Flutes/Inserts 2
Thread Pitch 0.40MM
Thread Size M2
Tap Drill Range 0.0622 1.58MM - 0.0665 1.69MM
Tap Square 0.1100
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating TIN
Standards & Identification
Dimension Standard DIN/DIN
