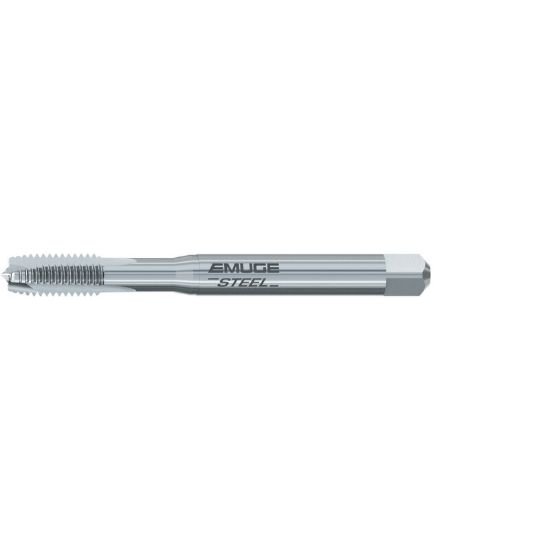

Picture of Emuge B0208920.0060 Tap Plug M6-1.00mm 6G Metric DIN/DIn HSSE

Emuge B0208920.0060 Tap Plug M6-1.00mm 6G Metric DIN/DIn HSSE

Part Number: EMUB0208920.0060 ISO: B0208920.0060

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1158908
Vendor: Sussex Tool and Supply
$41.96
EMUGE B0208920.0060 M6x1.00MM Over Sized Plug Plug 4P-5P HSSE Uncoated 6G Metric Steel
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <42HRC Steel
Overall Length 3.1496 80.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2360 5.99MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.00MM
Thread Type METRIC
Flute Direction STRAIGHT
Thread Size M6
Thread Limit 6G
Tap Style Over Sized Plug
Tap Type Plug
Dimension Standard DIN/DIN
Tap Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Square 0.1910
Tap Chamfer 4P-5P
