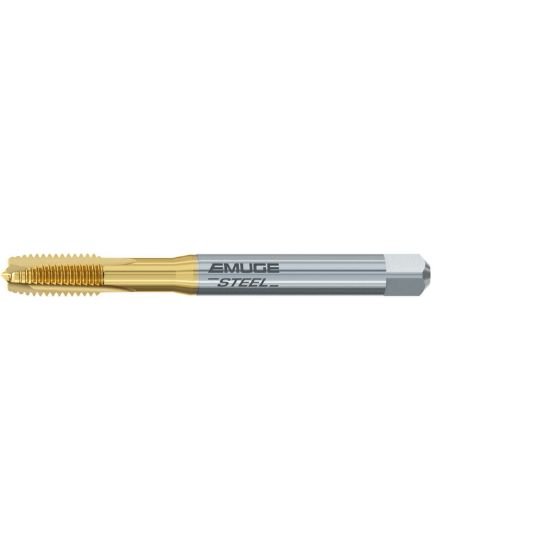

Picture of Emuge B0208400.0060 Tap M6-1.00mm Plug Metric DIN/DIn 4P-5P Carbide HSSE TiN

Emuge B0208400.0060 Tap M6-1.00mm Plug Metric DIN/DIn 4P-5P Carbide HSSE TiN

Part Number: EMUB0208400.0060 ISO: B0208400.0060

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1158978
Vendor: Sussex Tool and Supply
$50.24
EMUGE B0208400.0060 M6x1.00MM Cut Spiral Point Plug 4P-5P HSSE TiN 6H Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <42HRC Steel
Coating TIN
Overall Length 3.1496 80.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2360 5.99MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.00MM
Thread Type METRIC
Flute Direction STRAIGHT
Thread Size M6
Thread Limit 6H
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard DIN/DIN
Tap Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Square 0.1910
Tap Chamfer 4P-5P
