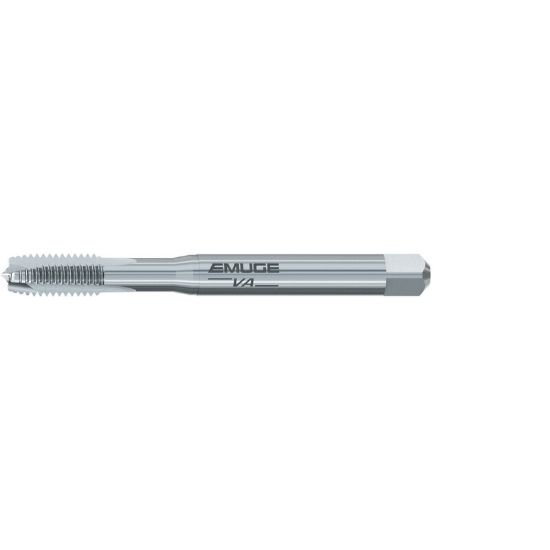

Emuge B0203020.0060 Tap Plug M6-1.00mm 6G Metric DIN/DIn HSSE Nitride
Emuge B0203020.0060 Tap Plug M6-1.00mm 6G Metric DIN/DIn HSSE Nitride
Part Number: EMUB0203020.0060 ISO: B0203020.0060
Need Assistance or Service? Please call 262-251-4020
Manufacturer:
EMUGE
SKU:
1160152
Vendor:
Sussex Tool and Supply
$45.66
Qty:
Add to cart
Add to My List
Add to compare list
Email a friend
Share This:
EMUGE B0203020.0060 M6x1.00MM Over Sized Plug Plug 4P-5P HSSE Nitride 6G Metric Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name
Attribute value
Shipping State
MASSACHUSETTS
Made In USA
NO
Cutter Type
Tapping
Tool Material
Steel
Cutting Edge Mat
HSSE
Machine Side Connection Type
Tap Collet
Cut Rating
Stainless Steel, <42HRC Steel
Coating
Nitride
Overall Length
3.1496 80.00MM
Coolant Thru
Non Coolant
Shank/Pilot Dia
0.2360 5.99MM
Flutes/Inserts
3
Type Of Tool
Tap
Length Type
STANDARD
Performance Rating
High Performance
Thread Pitch
1.00MM
Thread Type
METRIC
Flute Direction
STRAIGHT
Thread Size
M6
Thread Limit
6G
Tap Style
Over Sized Plug
Tap Type
Plug
Dimension Standard
DIN/DIN
Tap Drill Range
0.1953 4.96MM - 0.2055 5.22MM
Tap Square
0.1910
Tap Chamfer
4P-5P
