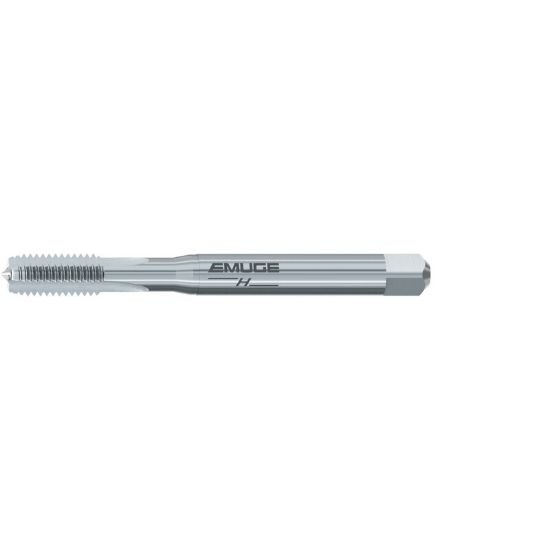

Emuge B0100501.0060 Tap M6-1.00mm Mod Bottom Metric DIN/DIn 2.0P-3.0P HSSE Nitride

Part Number: EMUB0100501.0060 ISO: B0100501.0060

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1155624
$38.63
EMUGE B0100501.0060 M6x1.00MM Cut Straight Flute Mod Bottom 2.0P-3.0P HSSE Nitride 6H Metric Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating High Temp, Inconel, Titanium
Coating Nitride
Overall Length 3.1496 80.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2360 5.99MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.00MM
Thread Type METRIC
Flute Direction STRAIGHT
Thread Size M6
Thread Limit 6H
Tap Style Cut Straight Flute
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Tap Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Square 0.1910
Tap Chamfer 2.0P-3.0P
