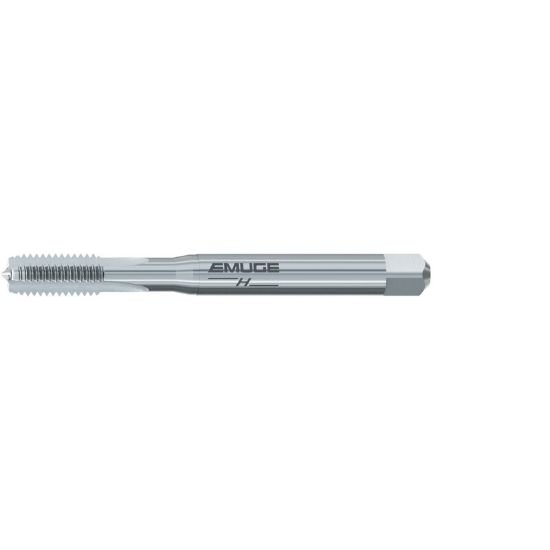

Emuge B0100501.0025 Tap M2.5-0.45mm Mod Bottom Metric DIN/DIn 2.0P-3.0P Carbide HSSE Nitride
Emuge B0100501.0025 Tap M2.5-0.45mm Mod Bottom Metric DIN/DIn 2.0P-3.0P Carbide HSSE Nitride
Part Number: EMUB0100501.0025 ISO: B0100501.0025
Need Assistance or Service? Please call 262-251-4020
Manufacturer:
EMUGE
SKU:
1155619
Vendor:
Sussex Tool and Supply
$48.47
Qty:
Add to cart
Add to My List
Add to compare list
Email a friend
Share This:
EMUGE B0100501.0025 M2.5x0.45MM Cut Straight Flute Mod Bottom 2.0P-3.0P HSSE Nitride 6H Metric Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name
Attribute value
Shipping State
MASSACHUSETTS
Made In USA
NO
Cutter Type
Tapping
Tool Material
Steel
Cutting Edge Mat
HSSE
Machine Side Connection Type
Tap Collet
Cut Rating
High Temp, Inconel, Titanium
Coating
Nitride
Overall Length
1.9685 50.00MM
Coolant Thru
Non Coolant
Shank/Pilot Dia
0.1102 2.80MM
Flutes/Inserts
3
Type Of Tool
Tap
Length Type
STANDARD
Performance Rating
High Performance
Thread Pitch
0.45MM
Thread Type
METRIC
Flute Direction
STRAIGHT
Thread Size
M2.5
Thread Limit
6H
Tap Style
Cut Straight Flute
Tap Type
Mod Bottom
Dimension Standard
DIN/DIN
Tap Drill Range
0.0799 2.03MM - 0.0846 2.15MM
Tap Square
0.1100
Tap Chamfer
2.0P-3.0P
