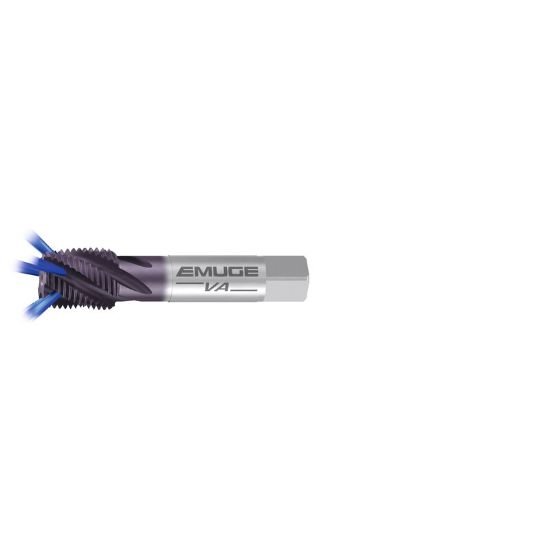

Picture of Emuge AW889300.5765 Tap 1/4-18.00TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P Coolant Carbide HSSE TiCN

Emuge AW889300.5765 Tap 1/4-18.00TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P Coolant Carbide HSSE TiCN

Part Number: EMUAW889300.5765 ISO: AW889300.5765

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1158074
Vendor: Sussex Tool and Supply
$163.54
EMUGE AW889300.5765 1/4"x18.00TPI Pipe Spiral Flute Pipe 2.0P-3.0P HSSE TiCN PIPE NPT/NPTF/ANPT Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Gray Iron, <40HRC Steel, Ductile Iron
Coating TICN
Overall Length 2.4370 61.90MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.5620 14.27MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 18.00TPI
Thread Type NPT/NPTF/ANPT
Flute Direction RIGHT
Thread Size 1/4"
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Tap Type Pipe
Dimension Standard ANSI/ANSI
Tap Drill Range 0.4378 11.12MM
Tap Square 0.4210
Tap Chamfer 2.0P-3.0P
