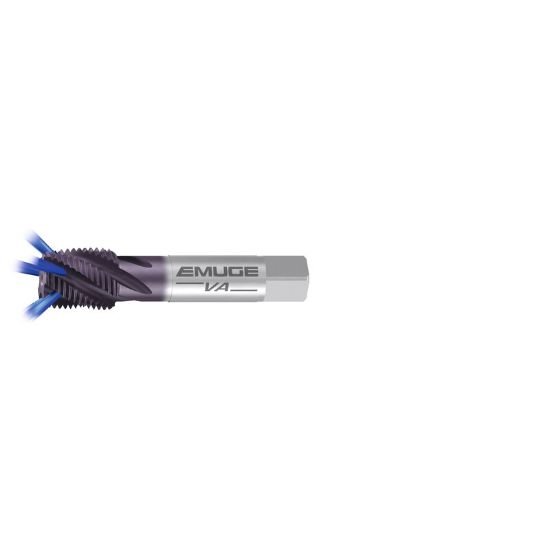

Picture of Emuge AW889300.5763 Tap 1/16-27.00TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P Coolant Carbide HSSE TiCN

Emuge AW889300.5763 Tap 1/16-27.00TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P Coolant Carbide HSSE TiCN

Part Number: EMUAW889300.5763 ISO: AW889300.5763
Looking for alternatives…
Find a drill for this tap 1/16" × 27.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1158072
Vendor: Sussex Tool and Supply
$165.21

Description

EMUGE AW889300.5763 1/16"x27.00TPI Pipe Spiral Flute Pipe 2.0P-3.0P HSSE TiCN PIPE NPT/NPTF/ANPT Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Thru Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NPT/NPTF/ANPT
Flute Direction RIGHT
Tap Style Pipe Spiral Flute
Tap Type Pipe
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 2.1250 53.98MM
Shank/Pilot Dia 0.3125 7.93MM - 5/16
Flutes/Inserts 3
Thread Pitch 27.00TPI
Thread Size 1/16"
Tap Drill Range 0.2417 6.14MM
Tap Square 0.2340
Performance & Capacity
Cut Rating Gray Iron, <40HRC Steel, Ductile Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit PIPE
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating TICN
Standards & Identification
Dimension Standard ANSI/ANSI
