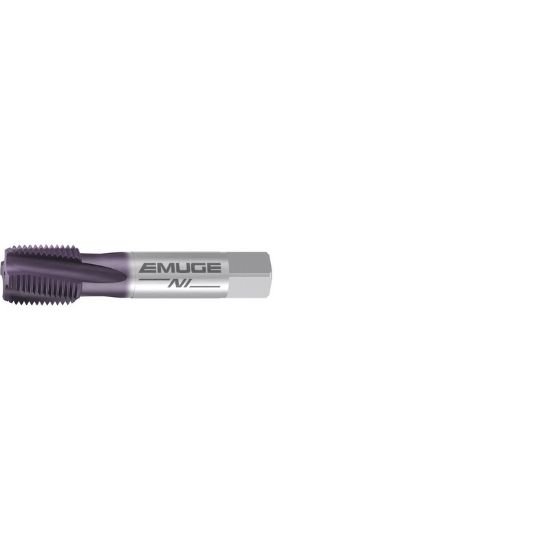

Picture of Emuge AW79J400.5787 Tap 3/4-14.00TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P HSSE TiCN

Emuge AW79J400.5787 Tap 3/4-14.00TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P HSSE TiCN

Part Number: EMUAW79J400.5787 ISO: AW79J400.5787

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1158101
Vendor: Sussex Tool and Supply
$390.24
EMUGE AW79J400.5787 3/4"x14.00TPI Pipe Spiral Flute Pipe 2.0P-3.0P HSSE TiCN PIPE NPT/NPTF/ANPT Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating High Temp, Inconel, Titanium
Coating TICN
Overall Length 3.2520 82.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.9060 23.01MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 14.00TPI
Thread Type NPT/NPTF/ANPT
Flute Direction RIGHT
Thread Size 3/4"
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Tap Type Pipe
Dimension Standard ANSI/ANSI
Tap Drill Range 0.9059 23.01MM
Tap Square 0.6790
Tap Chamfer 2.0P-3.0P
