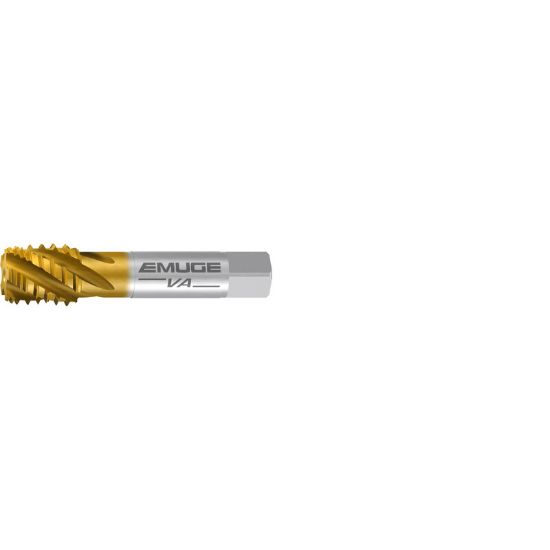

EMUGE AW493100.5788 Tap 1-11.50TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P Carbide HSSE TiN

ISO: AW493100.5788

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAW493100.5788
Delivery date: 3-5 days
$580.62

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Made In USA No
Application Spiral Flute Pipe, Tapping, Pipe Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Overall Len 3.7520 95.30MM
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Tap Square 0.8430
Thread Size 1"
Thread Pitch 11.50TPI
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Tap Type Pipe
Dimension Standard ANSI/ANSI
Flutes/Inserts 5
Thread Limit PIPE
Shank/Pilot Dia 1.1250 28.58MM - 1-1/8
Drill Range 1.1406 28.97MM
Tap Style Pipe Spiral Flute
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
