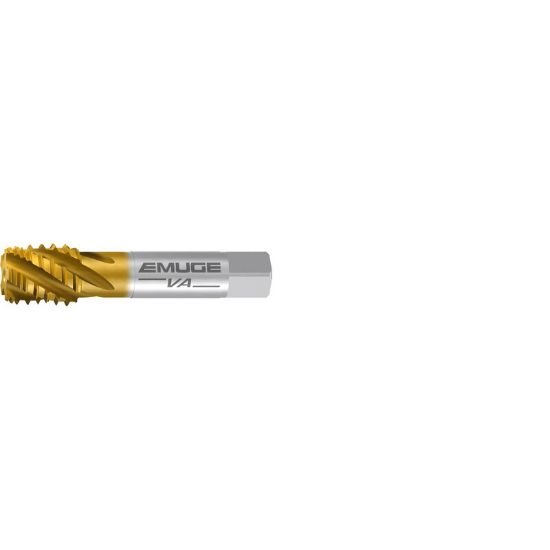

Picture of Emuge AW493100.5766 Tap 3/8-18.00TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P HSSE TiN

Emuge AW493100.5766 Tap 3/8-18.00TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P HSSE TiN

Part Number: EMUAW493100.5766 ISO: AW493100.5766

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1158128
Vendor: Sussex Tool and Supply
$179.37
EMUGE AW493100.5766 3/8"x18.00TPI Pipe Spiral Flute Pipe 2.0P-3.0P HSSE TiN PIPE NPT/NPTF/ANPT Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TIN
Overall Length 2.5620 65.07MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7000 17.78MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 18.00TPI
Thread Type NPT/NPTF/ANPT
Flute Direction RIGHT
Thread Size 3/8"
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Tap Type Pipe
Dimension Standard ANSI/ANSI
Tap Drill Range 0.5622 14.28MM
Tap Square 0.5310
Tap Chamfer 2.0P-3.0P
