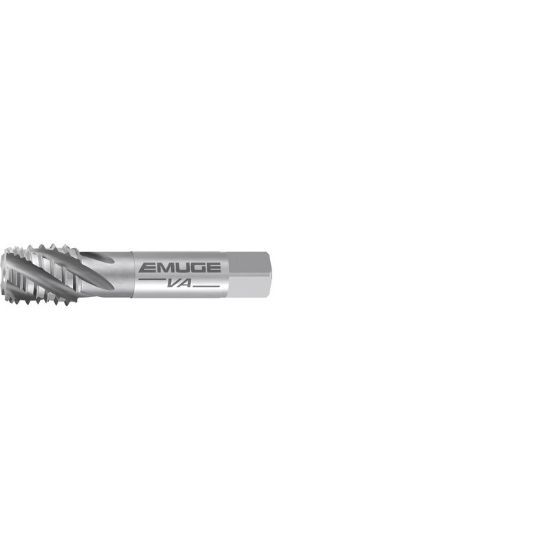

EMUGE AW493000.5784 Tap 1/4-18.00TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P Carbide HSSE

ISO: AW493000.5784

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAW493000.5784
Delivery date: 3-5 days
$121.35

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Application Spiral Flute Pipe, Tapping, Pipe Tapping
Made In USA No
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Thread Pitch 18.00TPI
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Tap Type Pipe
Thread Size 1/4"
Shank/Pilot Dia 0.5620 14.27MM
Drill Range 0.4378 11.12MM
Tap Square 0.4210
Thread Type NPT/NPTF/ANPT
Flute Direction R - Right
Length Type Standard
Tool Material Steel
Dimension Standard ANSI/ANSI
Overall Len 2.4370 61.90MM
Flutes/Inserts 3
Cut Rating <40HRC Steel, Stainless Steel
Tap Style Pipe Spiral Flute
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
