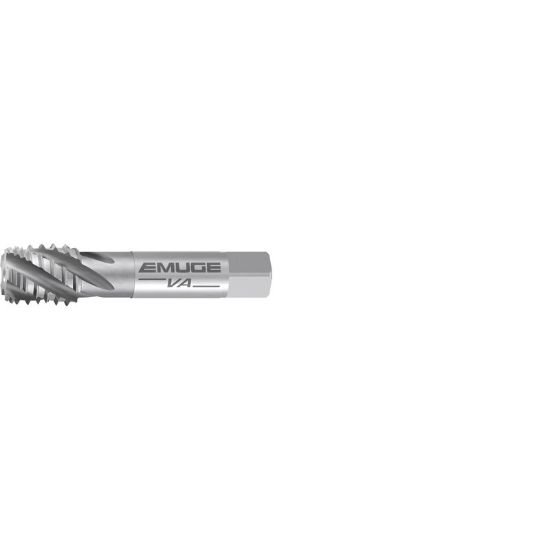

Picture of Emuge AW493000.5763 Tap 1/16-27.00TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P Carbide HSSE

Emuge AW493000.5763 Tap 1/16-27.00TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P Carbide HSSE

Part Number: EMUAW493000.5763 ISO: AW493000.5763
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$128.20
SKU: 1158111

Description

EMUGE AW493000.5763 1/16"x27.00TPI Pipe Spiral Flute Pipe 2.0P-3.0P HSSE Uncoated PIPE NPT/NPTF/ANPT Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NPT/NPTF/ANPT
Flute Direction RIGHT
Tap Style Pipe Spiral Flute
Tap Type Pipe
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 2.1250 53.98MM
Shank/Pilot Dia 0.3125 7.93MM - 5/16
Flutes/Inserts 3
Thread Pitch 27.00TPI
Thread Size 1/16"
Tap Drill Range 0.2417 6.14MM
Tap Square 0.2340
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit PIPE
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Standards & Identification
Dimension Standard ANSI/ANSI
