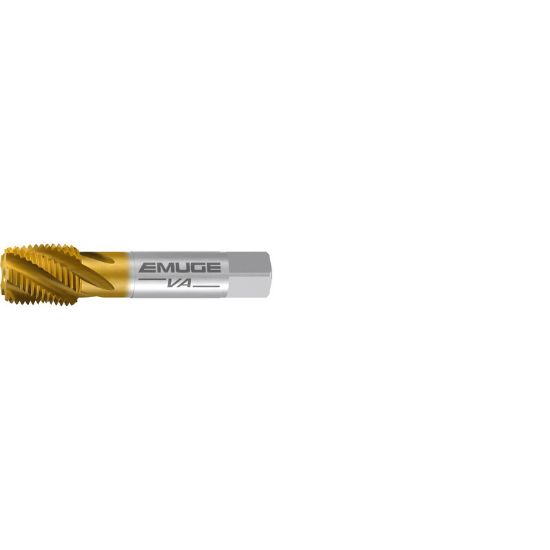

EMUGE AW483100.5766 Tap 3/8-18.00TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P Carbide HSSE TiN

ISO: AW483100.5766

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAW483100.5766
Delivery date: 3-5 days
$136.23

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Tapping, Pipe Tapping, Spiral Flute Pipe
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Coating TiN
Dimensional Specifications
Thread Type NPT/NPTF/ANPT
Flute Direction R - Right
Length Type Standard
Dimension Standard ANSI/ANSI
Flutes/Inserts 3
Thread Pitch 18.00TPI
Thread Limit PIPE
Drill Range 0.5622 14.28MM
Tap Style Pipe Spiral Flute
Thread Size 3/8"
Cut Rating <40HRC Steel, Stainless Steel
Tap Chamfer 2.0P-3.0P
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.7000 17.78MM
Tap Square 0.5310
Tap Type Pipe
Overall Len 2.5620 65.07MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
