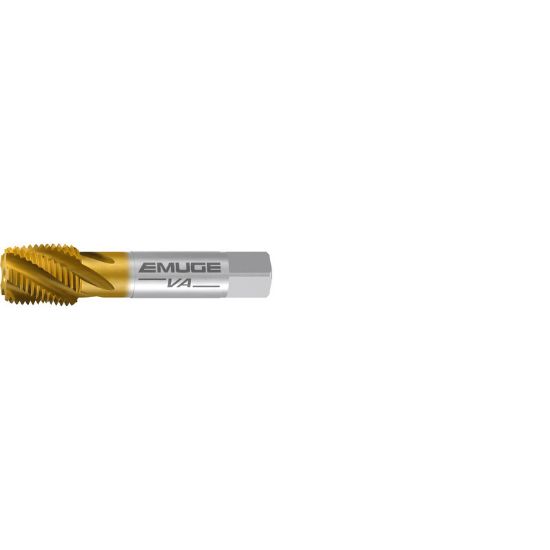

EMUGE AW483100.5765 Tap 1/4-18.00TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P Carbide HSSE TiN

ISO: AW483100.5765

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAW483100.5765
Delivery date: 3-5 days
$102.48

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Pipe Tapping, Spiral Flute Pipe
Performance Rating High Performance
Made In USA No
Coating TiN
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Dimension Standard ANSI/ANSI
Overall Len 2.4370 61.90MM
Flutes/Inserts 3
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Thread Size 1/4"
Drill Range 0.4378 11.12MM
Tap Square 0.4210
Shank/Pilot Dia 0.5620 14.27MM
Machine Side Connection Type Tap Collet
Tap Type Pipe
Thread Pitch 18.00TPI
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
