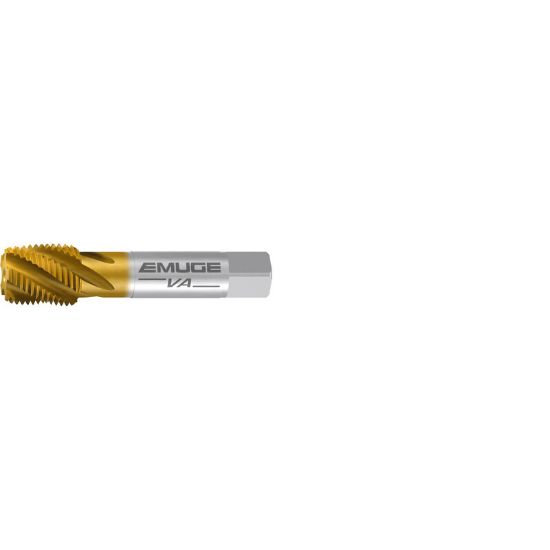

EMUGE AW483100.5764 Tap 1/8-27.00TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P HSSE TiN

ISO: AW483100.5764

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAW483100.5764
Delivery date: 3-5 days
$91.42

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Spiral Flute Pipe, Tapping, Pipe Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Made In USA No
Coating TiN
Dimensional Specifications
Thread Size 1/8"
Thread Pitch 27.00TPI
Tap Type Pipe
Dimension Standard ANSI/ANSI
Thread Limit PIPE
Tap Square 0.3280
Tap Style Pipe Spiral Flute
Tap Chamfer 2.0P-3.0P
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Overall Len 2.1250 53.98MM
Flutes/Inserts 3
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Shank/Pilot Dia 0.4370 11.10MM
Drill Range 0.3319 8.43MM
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
