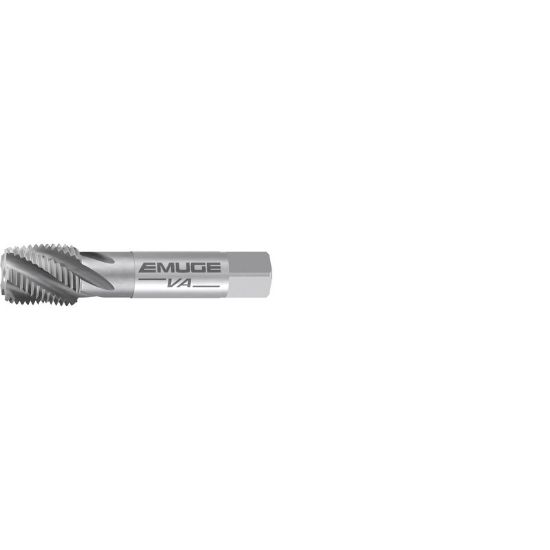

EMUGE AW483000.5791 Tap 2-11.50TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P HSSE

ISO: AW483000.5791

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAW483000.5791
Delivery date: 3-5 days
$997.21

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Spiral Flute Pipe, Tapping, Pipe Tapping
Package Size 1
Made In USA No
Shipping State Massachusetts
Performance Rating High Performance
Dimensional Specifications
Tool Material Steel
Thread Size 2"
Tap Square 1.4060
Dimension Standard ANSI/ANSI
Thread Pitch 11.50TPI
Cut Rating <40HRC Steel, Stainless Steel
Tap Chamfer 2.0P-3.0P
Thread Type NPT/NPTF/ANPT
Flute Direction R - Right
Length Type Standard
Thread Limit PIPE
Shank/Pilot Dia 1.8750 47.63MM - 1-7/8
Flutes/Inserts 7
Drill Range 2.1874 55.56MM
Tap Style Pipe Spiral Flute
Machine Side Connection Type Tap Collet
Tap Type Pipe
Overall Len 4.5000 114.30MM
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
