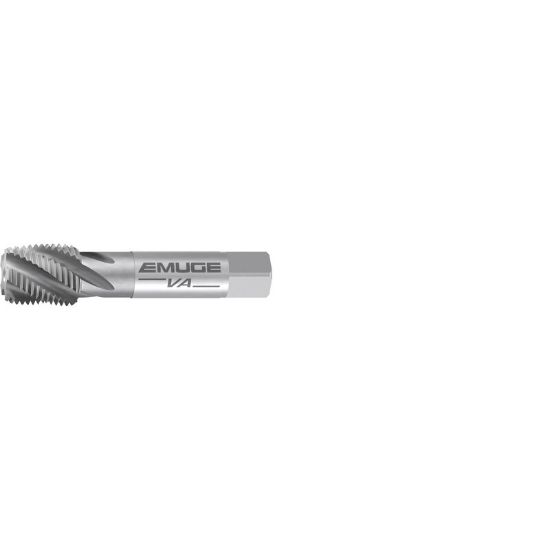

EMUGE AW483000.5784 Tap 1/4-18.00TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P Carbide HSSE

ISO: AW483000.5784

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAW483000.5784
Delivery date: 3-5 days
$86.84

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Pipe Tapping, Spiral Flute Pipe
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Made In USA No
Dimensional Specifications
Tool Material Steel
Overall Len 2.4370 61.90MM
Flutes/Inserts 3
Dimension Standard ANSI/ANSI
Thread Pitch 18.00TPI
Tap Style Pipe Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Thread Size 1/4"
Shank/Pilot Dia 0.5620 14.27MM
Drill Range 0.4378 11.12MM
Tap Square 0.4210
Tap Type Pipe
Thread Type NPT/NPTF/ANPT
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
