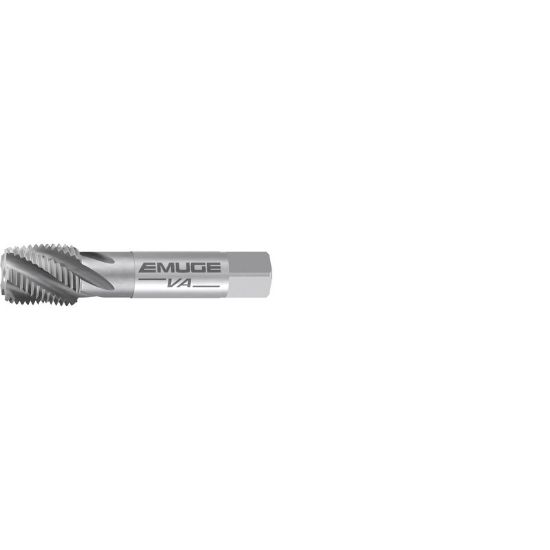

EMUGE AW483000.5783 Tap 1/8-27.00TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P HSSE

ISO: AW483000.5783

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAW483000.5783
Delivery date: 3-5 days
$77.79

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Pipe Tapping, Spiral Flute Pipe
Performance Rating High Performance
Shipping State Massachusetts
Made In USA No
Package Size 1
Dimensional Specifications
Dimension Standard ANSI/ANSI
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Thread Size 1/8"
Machine Side Connection Type Tap Collet
Tap Type Pipe
Tool Material Steel
Drill Range 0.3319 8.43MM
Overall Len 2.1250 53.98MM
Flutes/Inserts 3
Thread Type NPT/NPTF/ANPT
Flute Direction R - Right
Shank/Pilot Dia 0.4370 11.10MM
Length Type Standard
Cut Rating <40HRC Steel, Stainless Steel
Tap Square 0.3280
Tap Chamfer 2.0P-3.0P
Thread Pitch 27.00TPI
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
