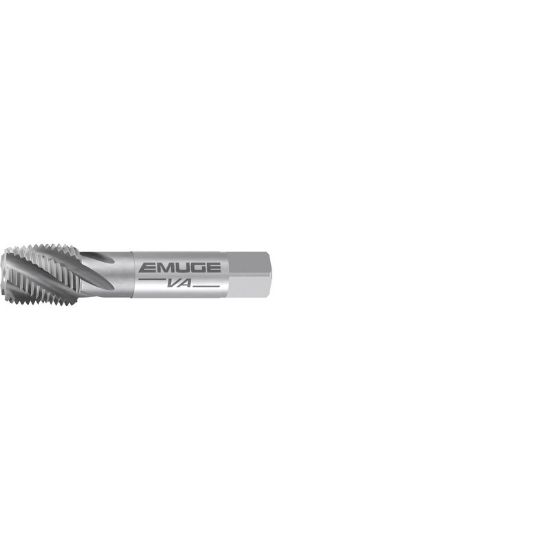

EMUGE AW483000.5770 Tap 1-1/4-11.50TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P HSSE

ISO: AW483000.5770

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAW483000.5770
Delivery date: 3-5 days
$543.02

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Spiral Flute Pipe, Pipe Tapping, Tapping
Package Size 1
Shipping State Massachusetts
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Thread Size 1-1/4"
Overall Len 4.0000 101.60MM
Cut Rating <40HRC Steel, Stainless Steel
Drill Range 1.4839 37.69MM
Tap Style Pipe Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Limit PIPE
Tap Square 0.9840
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 1.3120 33.32MM
Tool Material Steel
Flutes/Inserts 5
Thread Pitch 11.50TPI
Thread Type NPT/NPTF/ANPT
Flute Direction R - Right
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Type Pipe
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
