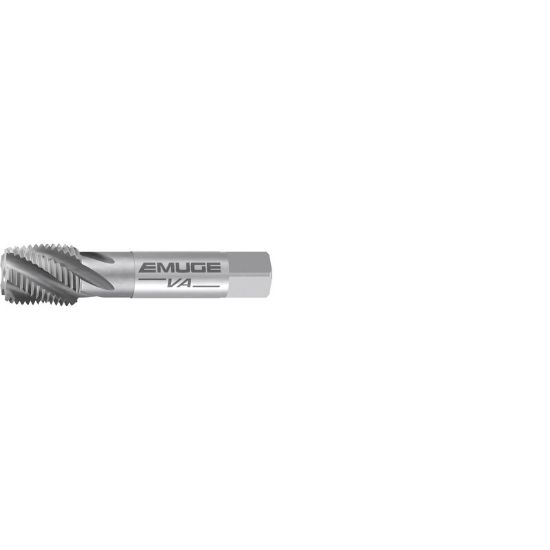

EMUGE AW483000.5767 Tap 1/2-14.00TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P Carbide HSSE

ISO: AW483000.5767

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAW483000.5767
Delivery date: 3-5 days
$180.92

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Spiral Flute Pipe, Pipe Tapping
Performance Rating High Performance
Made In USA No
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.6870 17.45MM
Thread Pitch 14.00TPI
Tap Type Pipe
Thread Size 1/2"
Tool Material Steel
Flutes/Inserts 5
Thread Type NPT/NPTF/ANPT
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Drill Range 17.8500 453.39MM
Tap Square 0.5150
Tap Style Pipe Spiral Flute
Tap Chamfer 2.0P-3.0P
Overall Len 3.1260 79.40MM
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
