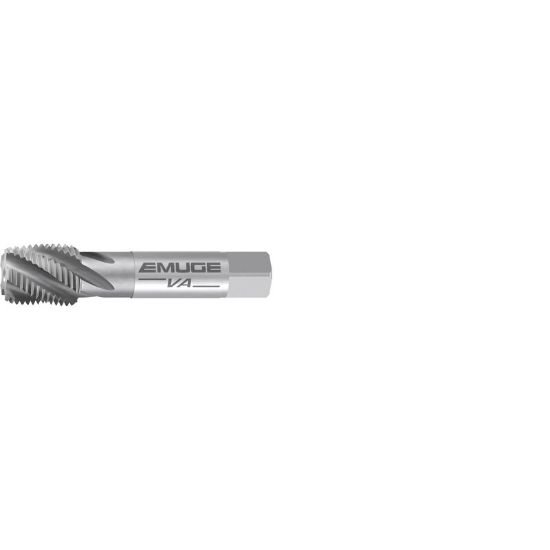

Picture of Emuge AW483000.5768 Tap 3/4-14.00TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P HSSE

Emuge AW483000.5768 Tap 3/4-14.00TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P HSSE

Part Number: EMUAW483000.5768 ISO: AW483000.5768
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$298.45
SKU: 1157945

Description

EMUGE AW483000.5768 3/4"x14.00TPI Pipe Spiral Flute Pipe 2.0P-3.0P HSSE Uncoated PIPE NPT/NPTF/ANPT Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NPT/NPTF/ANPT
Flute Direction RIGHT
Tap Style Pipe Spiral Flute
Tap Type Pipe
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 3.2520 82.60MM
Shank/Pilot Dia 0.9060 23.01MM
Flutes/Inserts 5
Thread Pitch 14.00TPI
Thread Size 3/4"
Tap Drill Range 0.9059 23.01MM
Tap Square 0.6790
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit PIPE
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Standards & Identification
Dimension Standard ANSI/ANSI
