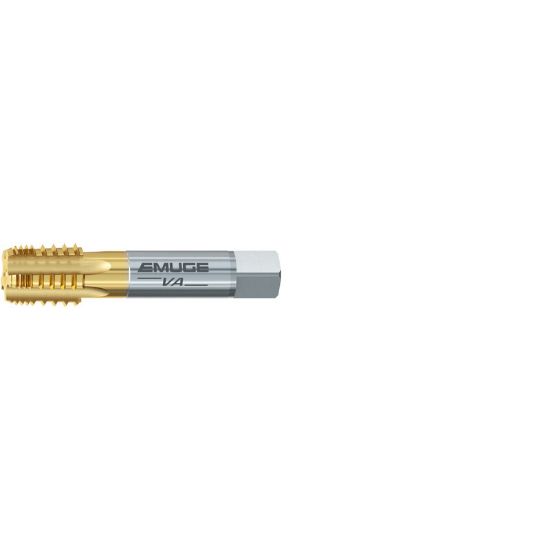

EMUGE AW193100.5791 Tap 2-11.50TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P HSSE TiN

ISO: AW193100.5791

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAW193100.5791
Delivery date: 3-5 days
$1,252.89

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Shipping State Massachusetts
Application Straight Flute Pipe, Tapping, Pipe Tapping
Made In USA No
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 1.8750 47.63MM - 1-7/8
Drill Range 2.1874 55.56MM
Tool Material Steel
Thread Pitch 11.50TPI
Thread Type NPT/NPTF/ANPT
Length Type Standard
Thread Size 2"
Tap Square 1.4060
Flute Direction STRAIGHT
Tap Type Pipe
Dimension Standard ANSI/ANSI
Cut Rating Ductile Iron, Gray Iron
Overall Len 4.5000 114.30MM
Tap Style Pipe Straight Flute
Flutes/Inserts 7
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Automotive Yes
Job Shop Yes
