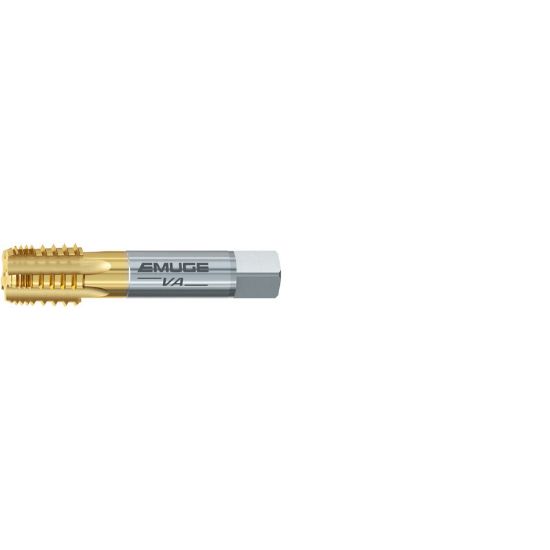

EMUGE AW193100.5786 Tap 1/2-14.00TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P Carbide HSSE TiN

ISO: AW193100.5786

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAW193100.5786
Delivery date: 3-5 days
$229.31

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Application Pipe Tapping, Tapping, Straight Flute Pipe
Package Size 1
Performance Rating High Performance
Coating TiN
Made In USA No
Dimensional Specifications
Thread Size 1/2"
Tool Material Steel
Flutes/Inserts 5
Thread Limit PIPE
Tap Square 0.5150
Tap Chamfer 2.0P-3.0P
Dimension Standard ANSI/ANSI
Cut Rating Ductile Iron, Gray Iron
Shank/Pilot Dia 0.6870 17.45MM
Overall Len 3.1260 79.40MM
Tap Style Pipe Straight Flute
Thread Pitch 14.00TPI
Flute Direction STRAIGHT
Machine Side Connection Type Tap Collet
Drill Range 17.8500 453.39MM
Tap Type Pipe
Thread Type NPT/NPTF/ANPT
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Automotive Yes
