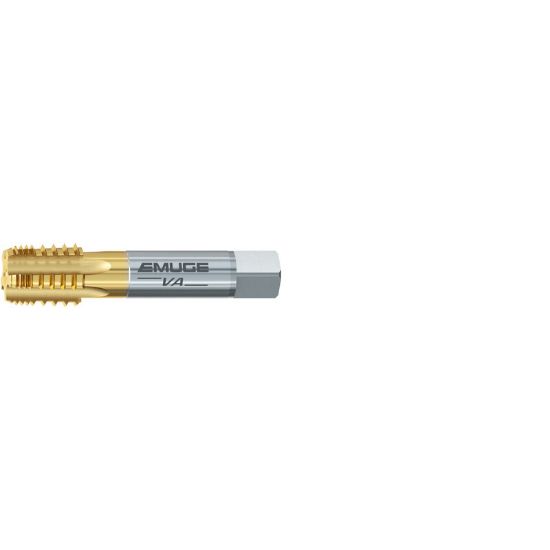

EMUGE AW193100.5782 Tap 1/16-27.00TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P Carbide HSSE TiN

ISO: AW193100.5782

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAW193100.5782
Delivery date: 3-5 days
$102.88

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Pipe Tapping, Straight Flute Pipe, Tapping
Package Size 1
Made In USA No
Performance Rating High Performance
Coating TiN
Shipping State Massachusetts
Dimensional Specifications
Cut Rating Ductile Iron, Gray Iron
Overall Len 2.1250 53.98MM
Flutes/Inserts 3
Tap Style Pipe Straight Flute
Drill Range 0.2417 6.14MM
Tap Chamfer 2.0P-3.0P
Thread Size 1/16"
Thread Type NPT/NPTF/ANPT
Length Type Standard
Thread Pitch 27.00TPI
Flute Direction STRAIGHT
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Dimension Standard ANSI/ANSI
Machine Side Connection Type Tap Collet
Tap Type Pipe
Thread Limit PIPE
Tool Material Steel
Tap Square 0.2340
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Automotive Yes
Agricultural YES
Job Shop Yes
