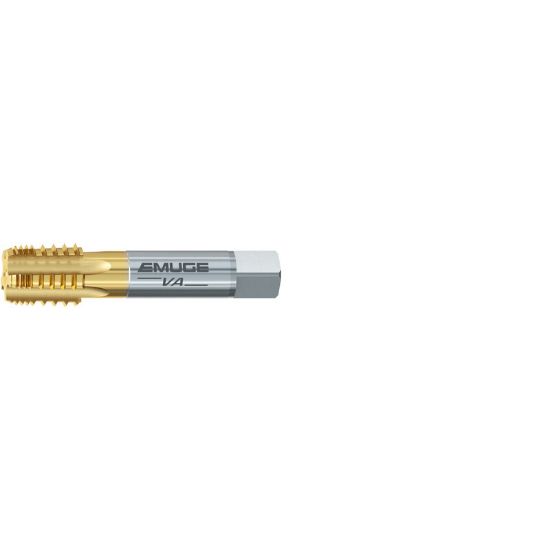

EMUGE AW193100.5767 Tap 1/2-14.00TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P Carbide HSSE TiN

ISO: AW193100.5767

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAW193100.5767
Delivery date: 3-5 days
$239.63

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Pipe Tapping, Straight Flute Pipe
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Made In USA No
Coating TiN
Dimensional Specifications
Thread Size 1/2"
Tool Material Steel
Flutes/Inserts 5
Thread Pitch 14.00TPI
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.6870 17.45MM
Tap Square 0.5150
Tap Chamfer 2.0P-3.0P
Thread Type NPT/NPTF/ANPT
Length Type Standard
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Flute Direction STRAIGHT
Drill Range 17.8500 453.39MM
Tap Type Pipe
Cut Rating Ductile Iron, Gray Iron
Overall Len 3.1260 79.40MM
Tap Style Pipe Straight Flute
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Agricultural YES
