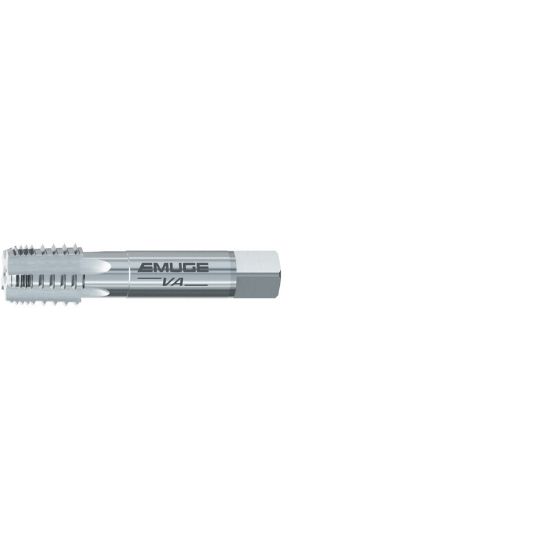

EMUGE AW193000.5790 Tap 1-1/2-11.50TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P HSSE

ISO: AW193000.5790

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAW193000.5790
Delivery date: 3-5 days
$849.38

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Application Straight Flute Pipe, Tapping, Pipe Tapping
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Thread Limit PIPE
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Overall Len 4.2520 108.00MM
Tap Chamfer 2.0P-3.0P
Machine Side Connection Type Tap Collet
Tap Type Pipe
Flute Direction STRAIGHT
Thread Type NPT/NPTF/ANPT
Length Type Standard
Tool Material Steel
Flutes/Inserts 5
Thread Size 1-1/2"
Dimension Standard ANSI/ANSI
Tap Square 1.1250
Cut Rating Ductile Iron, Gray Iron
Tap Style Pipe Straight Flute
Thread Pitch 11.50TPI
Drill Range 1.7177 43.63MM
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Automotive Yes
Job Shop Yes
