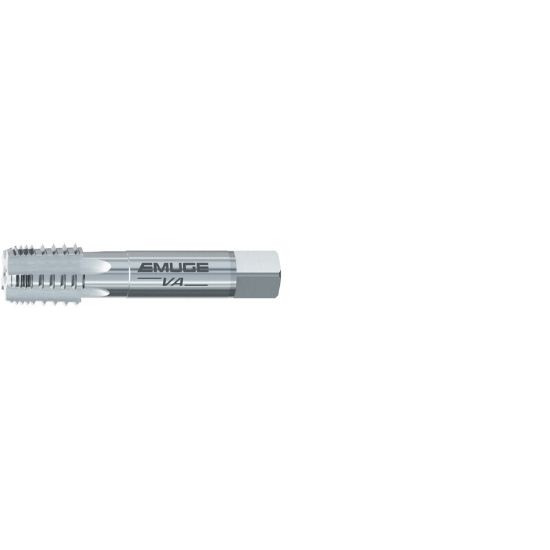

EMUGE AW193000.5787 Tap 3/4-14.00TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P HSSE

ISO: AW193000.5787

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAW193000.5787
Delivery date: 3-5 days
$294.01

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Pipe Tapping, Straight Flute Pipe
Performance Rating High Performance
Package Size 1
Shipping State Massachusetts
Made In USA No
Dimensional Specifications
Flute Direction STRAIGHT
Shank/Pilot Dia 0.9060 23.01MM
Tap Type Pipe
Thread Size 3/4"
Cut Rating Ductile Iron, Gray Iron
Tap Style Pipe Straight Flute
Dimension Standard ANSI/ANSI
Overall Len 3.2520 82.60MM
Tap Chamfer 2.0P-3.0P
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Drill Range 0.9059 23.01MM
Tap Square 0.6790
Thread Type NPT/NPTF/ANPT
Length Type Standard
Tool Material Steel
Flutes/Inserts 5
Thread Pitch 14.00TPI
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Agricultural YES
Automotive Yes
Job Shop Yes
