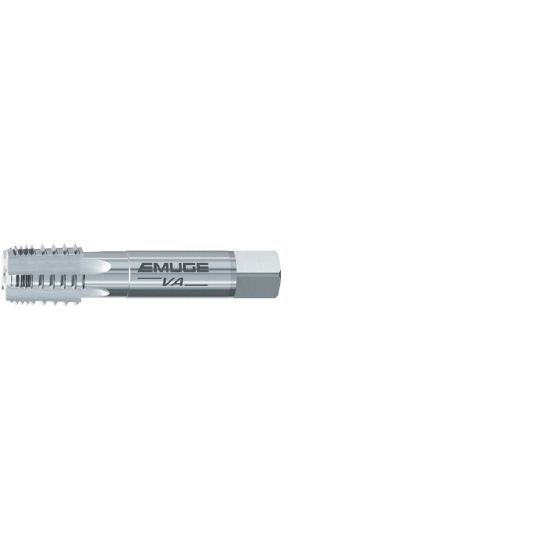

EMUGE AW193000.5785 Tap 3/8-18.00TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P Carbide HSSE

ISO: AW193000.5785

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAW193000.5785
Delivery date: 3-5 days
$129.99

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Pipe Tapping, Straight Flute Pipe
Performance Rating High Performance
Made In USA No
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Tap Style Pipe Straight Flute
Dimension Standard ANSI/ANSI
Cut Rating Ductile Iron, Gray Iron
Flutes/Inserts 3
Thread Size 3/8"
Length Type Standard
Thread Pitch 18.00TPI
Thread Limit PIPE
Drill Range 0.5622 14.28MM
Tap Chamfer 2.0P-3.0P
Flute Direction STRAIGHT
Overall Len 2.5620 65.07MM
Tap Type Pipe
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.7000 17.78MM
Tap Square 0.5310
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Automotive Yes
Job Shop Yes
