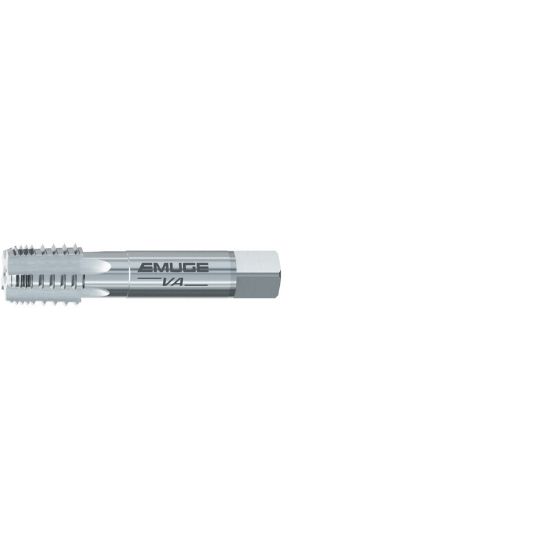

EMUGE AW193000.5783 Tap 1/8-27.00TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P HSSE

ISO: AW193000.5783

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAW193000.5783
Delivery date: 3-5 days
$92.45

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Application Tapping, Straight Flute Pipe, Pipe Tapping
Performance Rating High Performance
Made In USA No
Package Size 1
Dimensional Specifications
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Dimension Standard ANSI/ANSI
Thread Type NPT/NPTF/ANPT
Length Type Standard
Tap Square 0.3280
Tap Chamfer 2.0P-3.0P
Tool Material Steel
Shank/Pilot Dia 0.4370 11.10MM
Drill Range 0.3319 8.43MM
Cut Rating Ductile Iron, Gray Iron
Overall Len 2.1250 53.98MM
Flutes/Inserts 3
Tap Style Pipe Straight Flute
Thread Size 1/8"
Thread Pitch 27.00TPI
Flute Direction STRAIGHT
Tap Type Pipe
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Agricultural YES
Automotive Yes
Job Shop Yes
