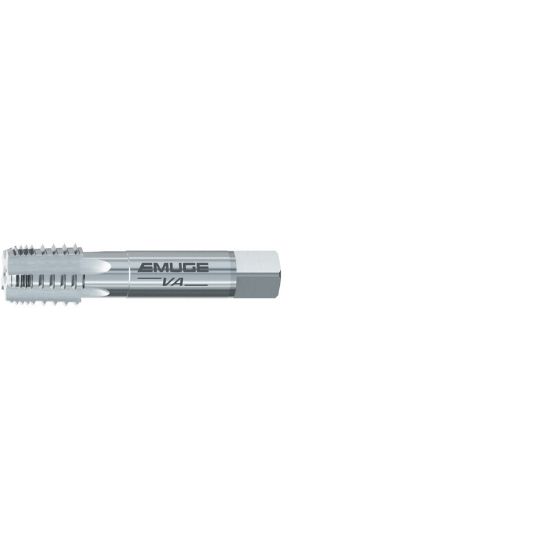

EMUGE AW193000.5769 Tap 1-11.50TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P Carbide HSSE

ISO: AW193000.5769

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAW193000.5769
Delivery date: 3-5 days
$472.25

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Straight Flute Pipe, Pipe Tapping
Performance Rating High Performance
Made In USA No
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Cut Rating Ductile Iron, Gray Iron
Tap Style Pipe Straight Flute
Dimension Standard ANSI/ANSI
Flute Direction STRAIGHT
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Tap Square 0.8430
Thread Size 1"
Thread Pitch 11.50TPI
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Type Pipe
Thread Limit PIPE
Shank/Pilot Dia 1.1250 28.58MM - 1-1/8
Overall Len 3.7520 95.30MM
Drill Range 1.1406 28.97MM
Tap Chamfer 2.0P-3.0P
Flutes/Inserts 5
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Automotive Yes
Agricultural YES
Job Shop Yes
