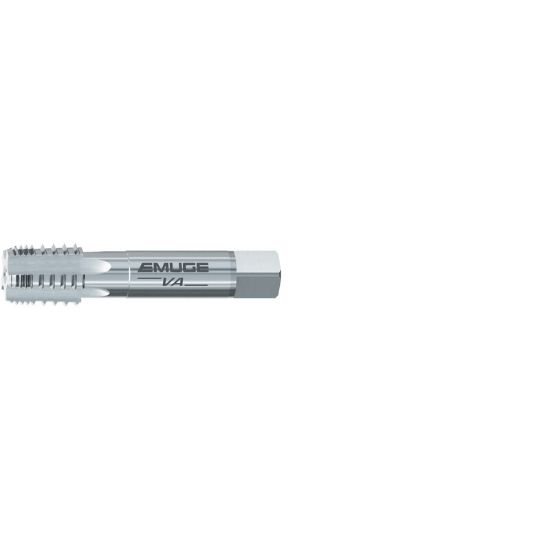

EMUGE AW193000.5763 Tap 1/16-27.00TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P Carbide HSSE

ISO: AW193000.5763

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAW193000.5763
Delivery date: 3-5 days
$96.39

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Straight Flute Pipe, Tapping, Pipe Tapping
Made In USA No
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Thread Size 1/16"
Thread Type NPT/NPTF/ANPT
Length Type Standard
Thread Pitch 27.00TPI
Flute Direction STRAIGHT
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Tap Type Pipe
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Cut Rating Ductile Iron, Gray Iron
Overall Len 2.1250 53.98MM
Flutes/Inserts 3
Tap Style Pipe Straight Flute
Tool Material Steel
Tap Square 0.2340
Dimension Standard ANSI/ANSI
Drill Range 0.2417 6.14MM
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Agricultural YES
