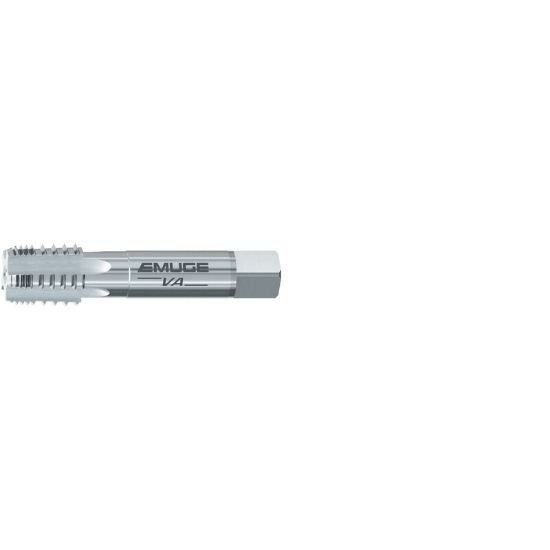

Picture of Emuge AW193000.5766 Tap 3/8-18.00TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P Carbide HSSE

Emuge AW193000.5766 Tap 3/8-18.00TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P Carbide HSSE

Part Number: EMUAW193000.5766 ISO: AW193000.5766
Looking for alternatives…
Find a drill for this tap 3/8" × 18.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1158154
Vendor: Sussex Tool and Supply
$164.60

Description

EMUGE AW193000.5766 3/8"x18.00TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE Uncoated PIPE NPT/NPTF/ANPT Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NPT/NPTF/ANPT
Flute Direction STRAIGHT
Tap Style Pipe Straight Flute
Tap Type Pipe
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 2.5620 65.07MM
Shank/Pilot Dia 0.7000 17.78MM
Flutes/Inserts 3
Thread Pitch 18.00TPI
Thread Size 3/8"
Tap Drill Range 0.5622 14.28MM
Tap Square 0.5310
Performance & Capacity
Cut Rating Gray Iron, Ductile Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit PIPE
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Standards & Identification
Dimension Standard ANSI/ANSI
