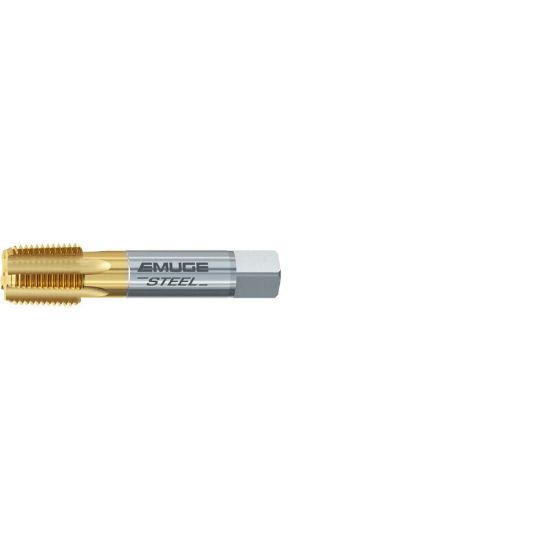

EMUGE AW181400.5786 Tap 1/2-14.00TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P Carbide HSSE TiN

ISO: AW181400.5786

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAW181400.5786
Delivery date: 3-5 days
$129.80

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Shipping State Massachusetts
Package Size 1
Application Pipe Tapping, Tapping, Straight Flute Pipe
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Machine Side Connection Type Tap Collet
Drill Range 17.8500 453.39MM
Tap Type Pipe
Thread Limit PIPE
Tap Chamfer 2.0P-3.0P
Tap Square 0.5150
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.6870 17.45MM
Tap Style Pipe Straight Flute
Thread Type NPT/NPTF/ANPT
Length Type Standard
Thread Size 1/2"
Tool Material Steel
Overall Len 3.1260 79.40MM
Flutes/Inserts 5
Thread Pitch 14.00TPI
Flute Direction STRAIGHT
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Job Shop Yes
