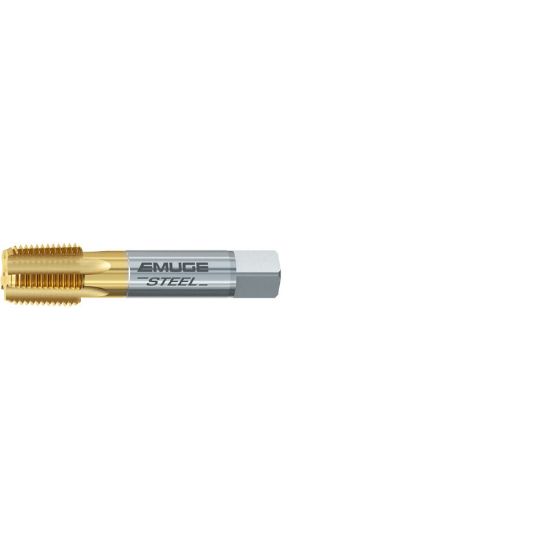

EMUGE AW181400.5768 Tap 3/4-14.00TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P HSSE TiN

ISO: AW181400.5768

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAW181400.5768
Delivery date: 3-5 days
$177.16

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Pipe Tapping, Straight Flute Pipe, Tapping
Made In USA No
Shipping State Massachusetts
Package Size 1
Coating TiN
Performance Rating High Performance
Dimensional Specifications
Tap Style Pipe Straight Flute
Thread Pitch 14.00TPI
Flute Direction STRAIGHT
Dimension Standard ANSI/ANSI
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Overall Len 3.2520 82.60MM
Flutes/Inserts 6
Length Type Standard
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Thread Limit PIPE
Tap Square 0.6790
Tap Chamfer 2.0P-3.0P
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.9060 23.01MM
Drill Range 0.9059 23.01MM
Tap Type Pipe
Thread Size 3/4"
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Automotive Yes
Agricultural YES
Energy Yes
